Circlip pliers are an essential tool for mechanics, engineers, and anyone involved in assembly or maintenance work. In this guide, we’ll walk through everything you need to know about circlip pliers—from their types and usage to how to choose the right one for your job. Whether you’re working in automotive repair, industrial maintenance, or DIY projects, understanding the features and functions of these tools can significantly improve your work efficiency. Let’s dive in and explore why choosing the right circlip pliers is crucial for your tasks.

1. Introduction to Circlip Pliers

Circlip pliers, also known as snap ring pliers, are specialized tools designed to install and remove circlips—small metal rings used in various mechanical applications. These pliers come in a range of designs, each suited for different tasks, from automotive repairs to delicate machinery work. They are essential for any job that requires retaining rings to secure components, such as bearings, gears, and shafts.

But here’s the kicker… choosing the wrong type of circlip pliers for your project can lead to frustrating failures, damaged components, or even injury. By understanding the different types of circlip pliers and their uses, you can avoid these pitfalls and ensure a smooth, efficient workflow.

Why Are Circlip Pliers Important?

Circlip pliers are crucial in situations where internal or external retaining rings need to be installed or removed. Without these specialized tools, working with circlips can be difficult, especially in tight or confined spaces. Using the correct circlip pliers not only simplifies the process but also helps maintain the integrity of your components.

2. Understanding the Design and Functionality of Circlip Pliers

Circlip pliers are designed to either expand or contract, depending on whether you’re working with internal or external circlips. The main components of a circlip plier include the handles, tips, and pivot point, which allow the user to apply the necessary force to manipulate the circlip effectively.

What’s the real story? Understanding how these pliers function will help you choose the right one for your specific job. There are two primary types of circlip pliers: internal and external. Internal circlip pliers are used for installing circlips inside a bore, while external circlip pliers are used for fitting rings outside a shaft.

Key Components of Circlip Pliers

• Handles: Ergonomically designed for comfort and control.
• Tips: Gripped at the end to fit into the circlip’s holes, typically pointed or curved for better engagement.
• Pivot Point: Provides leverage for applying force to the circlip.
• Locking Mechanism: Some models come with a locking feature to hold the circlip in place during installation.

Why Design Matters

The design of circlip pliers can directly affect the efficiency and precision with which you can perform your tasks. Pliers with non-slip grips and adjustable settings make for a more secure and controlled operation, ensuring that the circlip is installed or removed without damaging the surrounding components.

3. Types of Circlip Pliers

When it comes to choosing circlip pliers, the right choice depends on the type of work you’re doing and the type of circlip you’re handling. Circlip pliers come in various shapes and sizes, each tailored for specific tasks.

Ready for the good part? Let’s take a closer look at the most common types of circlip pliers available on the market.

External Circlip Pliers

External circlip pliers are designed to handle circlips that fit on the outside of a shaft or component. They work by contracting the circlip and allowing you to slide it into place. These pliers are essential for automotive repairs, machinery assembly, and general maintenance.

Internal Circlip Pliers

Internal circlip pliers, on the other hand, are used to handle circlips that fit inside a bore. These are perfect for use in applications such as engine repairs or when working with bearings and shafts that require a circlip to hold the parts in place.

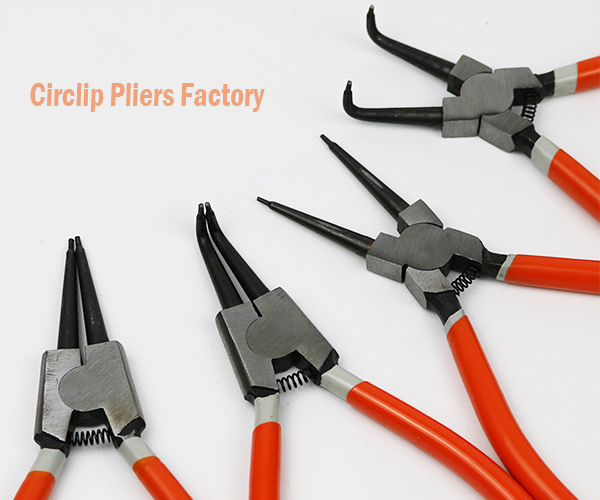

Straight vs. Curved Circlip Pliers

Straight circlip pliers are designed for use when you need direct access to the circlip, while curved models are ideal for working in confined spaces or when you need a better angle of approach.

4. How to Choose the Right Circlip Pliers

Choosing the right circlip pliers depends on several factors, including the type of circlip, the size of the component, and the specific requirements of your job.

This is where it gets interesting… Whether you’re working on small DIY projects or heavy-duty industrial work, selecting the appropriate pliers can significantly affect your efficiency and the quality of your results.

Factors to Consider When Choosing Circlip Pliers

• Size: Ensure that the pliers are designed to fit the size of the circlip you’re working with.
• Material: Look for pliers made from high-quality steel for better durability and performance.
• Ergonomics: Comfort matters, especially for extended use. Choose pliers with soft, ergonomic handles to reduce strain on your hands.

Specialized Pliers for Specific Tasks

For tasks that require greater precision, consider investing in specialized circlip pliers. These may feature adjustable jaws, different angles, or additional features like locking mechanisms to ensure optimal performance.

5. Step-by-Step Guide to Using Circlip Pliers

Using circlip pliers effectively requires understanding the correct technique for both installation and removal of the circlip.

You might be wondering… How exactly do you use these tools correctly? Let’s break it down into simple steps to help you avoid mistakes and increase your efficiency.

How to Use External Circlip Pliers Correctly

• Position the tips of the pliers in the holes of the circlip.
• Squeeze the handles together to expand the circlip.
• Carefully place the expanded circlip over the component or shaft, then release the handles to secure it in place.

How to Use Internal Circlip Pliers Correctly

• Insert the tips of the pliers into the internal holes of the circlip.
• Squeeze the handles to compress the circlip.
• Slide the circlip into the bore and release the pliers to secure it.

Common Mistakes to Avoid

• Using the wrong size pliers for your circlips can cause damage or inefficiency.
• Failing to apply even pressure can lead to bent or misshapen circlips.

6. Maintenance and Care for Circlip Pliers

Like any tool, circlip pliers need regular maintenance to ensure they remain in good working condition.

Here’s the deal… Proper care and maintenance can extend the lifespan of your circlip pliers and improve performance.

How to Clean and Lubricate Circlip Pliers

After each use, wipe down the pliers to remove any dirt, grease, or debris. Periodically apply a small amount of lubricant to the pivot point to ensure smooth operation.

Storing Circlip Pliers

Always store your pliers in a dry, cool place to prevent rust or corrosion. A tool box with a designated compartment for pliers can help keep them safe from damage.

Sharpening Circlip Pliers

Over time, the tips of your pliers may become dull. If this happens, you can sharpen them using a fine sharpening stone or file.

7. Advanced Tips and Tricks for Using Circlip Pliers

While circlip pliers are relatively straightforward tools, there are some advanced techniques that can make your tasks easier and more precise.

What’s the real story? Learning how to handle stubborn circlips or tricky spaces can take your efficiency to the next level.

Handling Stubborn or Rusted Circlips

If a circlip is rusted or stuck, apply a penetrating oil and let it sit for a few minutes before attempting removal. Using a pair of locking circlip pliers can help apply the necessary force without slipping.

Using Circlip Pliers in Tight Spaces

Curved or angled circlip pliers are ideal for working in confined spaces. They give you better access to circlips in hard-to-reach places.

Extending the Lifespan of Your Circlip Pliers

Regularly lubricate the joints and store your tools properly to prevent rust and damage. Replace any worn-out tips to maintain precision.

8. Circlip Pliers Safety Measures

While circlip pliers are simple tools, safety should always be a priority.

Here’s the kicker… Using circlip pliers incorrectly or without proper precautions can lead to injury or damage to the components.

Understanding the Safety Risks

Circlip pliers require significant force to manipulate the circlips. Always ensure you have a firm grip and use appropriate hand protection to avoid pinched fingers or slips.

Protective Gear

Wearing gloves can protect your hands from sharp edges, while safety goggles can shield your eyes from flying debris.

Safe Storage and Handling

Store your pliers away from moisture and sharp objects that could damage them. Always ensure they’re kept in a place where they won’t fall or be subjected to unnecessary force.

FAQ Section

Q1: What are Circlip Pliers?
Circlip pliers are specialized tools designed to install and remove circlips, small metal rings used in various mechanical components like bearings, axles, and gears.

Q2: How do Circlip Pliers work?
Circlip pliers use their jaws to expand or compress circlips, allowing them to be easily inserted or removed from components. The handles provide the leverage needed for applying force.

Q3: Can Circlip Pliers be used for other applications?
Yes, they can also be used for other retaining rings, such as snap rings, in automotive or industrial repairs. They are versatile tools for various mechanical tasks.

Q4: What are the best Circlip Pliers for heavy-duty tasks?
For heavy-duty applications, look for pliers made of high-quality steel, reinforced joints, and ergonomic handles for additional torque and comfort. Brands like Knipex and Irwin are ideal for demanding tasks.

Q5: How do I maintain Circlip Pliers?
Regularly clean and lubricate your circlip pliers, and store them in a dry environment to prevent rust. Sharpen the tips as necessary to maintain precision during use.
